425oz CNC Plasma Cutter CNC Plasma Cutting Machine Wantai 4.2A Motor-in 4-driver DQ542MA 4.2A 50V 128micro Hybrid 112CM Axis NEMA 23 Kit 4 CNC Stepper Motor NEMA 23

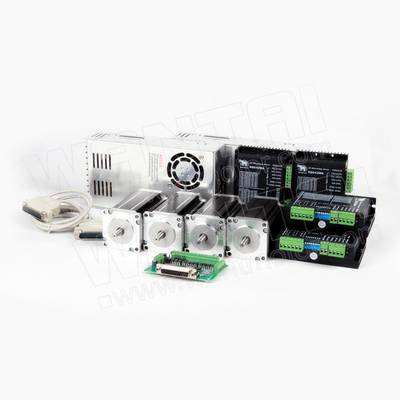

This item includes:

4 pcs Nema 23 stepper motor WT57STH115-4204A  4.2A 30Kg.cm(425oz-in)

4 pcs stepper motor driver DQ542MA 4.2A

2 pcs power supply:350W 36V

1 pc breakout board&cable

General Specification:

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ~+50deg

Insulation resistance:100MΩ  Min,500VDC

Insultion Strength--------500VAC for one minute

 1)stepper motor

Datasheet(WT57STH115-4204A ,4.2A, 425oz-in holding torque)

BLACK           A+

GREEN           A-

RED                B+

BLUE              B-

 2)stepper motor driver

 DQ542MA is a type of two-phase hybrid stepping motor driver, the drive voltage of which is from 18VDC to 50VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 42mm to 86mm outside diameter and less than 4.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Holding torque when DQ542MA run under high speed is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, Computer embroider machine, packing machines and so on.

Features:

High performance, low price

Average current control, 2-phase sinusoidal output current drive

Supply voltage from 18VDC to 50VDC

Opto-isolated signal I/O

Overvoltage, under voltage, overcurrect, phase short circuit protection

15 channels subdivision and automatic idle-current reduction

8 channels output phase current setting

Offline command input terminal

Motor torque is related to speed, but not related to step/revolution

High start speed

High holding torque under high speed

Electrical specification:

3) power supply

4) breakout board
