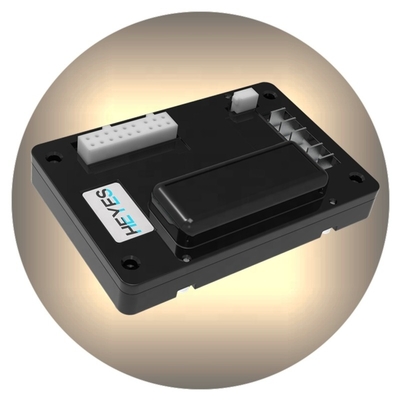

AGV Handling Vehicles HEYES BLPS-6030 60 Volt Motor Controller e Bike Motor Controller Motion Controller

9 Pieces
MOQ
$64.00(9 - 198 pieces) $57.50(199 - 199 pieces) $54.10(>=200 pieces)
цена
AGV Handling Vehicles HEYES BLPS-6030 60 Volt Motor Controller e Bike Motor Controller Motion Controller
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Warranty: 12 months
Model Number: BLPS-6030
Voltage: 20V~60V
Current range: 0A~50A
Product name: Electric Bicycle Bldc Motor Controller
Type: Programmable
Motor: DC Brushless Motor
Waterproof grade: IP67
Customized: Yes
Material: Aluminium Alloy
PAYMENT: T/T
Application: AGV handling vehicles ,golf carts,personnel transports,burden carriers
Основная информация
Model Number: BLPS-6030
Оплата и доставка Условия
Packaging Details: by cartons
Характер продукции
Products Description

PEKEW BLPS-6030 Brushless DC Motor Controller

The PEKEW Model BLPS-6030 Motor Speed Controller is a brushless DC motor controller. It provides efficient, optimal control for Brushless DC drive motors for battery powered vehicles. Optimized for Light Duty Pallet Trucks, Robots,Electric Wheels Chairs ,Sweepers Scrubber, Electric Forklift, Golf Carts ,Electric Wheelchairs ,Elderly Scooter Etc. Highly flexible programmability allows them to be applied on any low power BLDC motor application.

Key Words:Motor Controller,Motor Speed Controller,BLDC Motor Controller,Brushless Motor Controller,Brushed Motor Controller,Industrial Joystick

1,Power wiring

Category
Signal name
Definition
Wire number / color
Remarks

Power
Positive pole of power supply
B+
brown
6.3 snap spring
Negative pole of power supply
B-
blue
6.3 snap spring
2 ,Motor wiring
Category
Signal name
Definition
Wire number / color
Remarks

Motor phase
Phase U
A
yellow
6.3 snap spring
Phase V
B
green
6.3 snap spring
Phase W
C
blue
6.3 snap spring
3 ,Input &output signal definition
Remarks:
X1connector type: 5557-02R-210;
X2 connector type: 5557-06R-210;
X3 connector type: 5557-12R-210.
Signal name
Definition
Remarks
Holding brake positive pole
X1 B+
It is connected with the positive pole of the power supply
Holding brake negative pole
X1 BZ

Motor Hall signal
X2 Ha
X2 Hb
X2 Hc
Motor Hall supply negative pole
X2 0V
Motor Hall supply positive pole
X2 HV
Stepless speed regulation
X3 T
Analog voltage input
High and low speed switching control signal
X3 C
Low speed when suspended;High speed when connected with 0V
Direction switching control signal
X3 R
Forward when suspended;Reverse when connected with 0V
Motor start stop control signal
X3 H
It stops when it is suspended;Start when connected with 0V
0V
X3 0V
3.3V output
X3 3V3
5V output
X3 5V
Communication clock pin
X3 CL
Communication data pin
X3 CH
0V
X3 0V
Serial port receiving
X3 RX
Serial port transmission
X3 TX
Company Profile
XSTO(Guangzhou) Co., Ltd has been deeply involved in developing and producing motor controllers for more than 10 years,50% of the staff are R&D professionals. With advanced motor drive core technology, professional drive algorithm laboratory, modern production lines, and complete testing center, as a motor control expert,XSTO(Guangzhou) with the overall design and verification capabilities for motion control products.

PEKEW brand series products can be widely used in brushless DC motor, AC asynchronous motor, permanent magnet synchronous motor,and industrial servo motor control. Focus on the research and development, production and sales of motor drive control in the fields of Light Duty Pallet Trucks, Robots,Electric Wheels Chairs ,Sweepers Scrubber, Electric Forklift, Golf Carts ,Electric Wheelchairs, Elderly Scooter and other fields.
Product packaging&delivery
FAQ
1. Do you accept to customize a motor controller sample?
Yes. We can customize the driver sample for some requirements.
2. What industries your controller can be used in ?
Our motor driver can be used in widely industries, especially in Light Duty Pallet Trucks, Robots,Electric Wheels Chairs ,Sweepers Scrubber, Electric Forklift, Golf Carts ,Electric Wheelchairs, Elderly Scooter etc..
3. What is your terms of payment?
Small orders (≤99pcs)request 100% payment before shipping.Mass orders 30% deposit for production,70% balance by TT before shipping.
4.What is the warranty time?
We offer 12-month warranty time.
5.Are you a trading company or manufacture？
We are manufacture located in zhongshan,guangdong province,sales office located in guangzhou.welcome to visit us.
